Parking BOXX Architect Library
CAD Drawings & BIM Objects
Lane configuration drawings and 3D model files for every Parking BOXX system — ready for construction documents, Revit families, and STEP-compatible software.
22 Lane drawings
4 3D model families
3DM · RVT · STEP Model formats
Full-layout lane drawings for every standard configuration — center island, entry-only, exit-only, access control, and pay station setups. Each PDF is production-ready for inclusion in construction document sets.
CloudEASE Islands
Access Control
Truck Height
3D Models & BIM Objects
Download Product Models
Place accurate 3D objects directly into Rhino, Revit, or any STEP-compatible software. All models match physical unit dimensions as of the date shown.
ENB · EXB · MPB
EntryBOXX / ExitBOXX / Mini Pay BOXX
CloudEASE entry/exit terminals and mini pay station

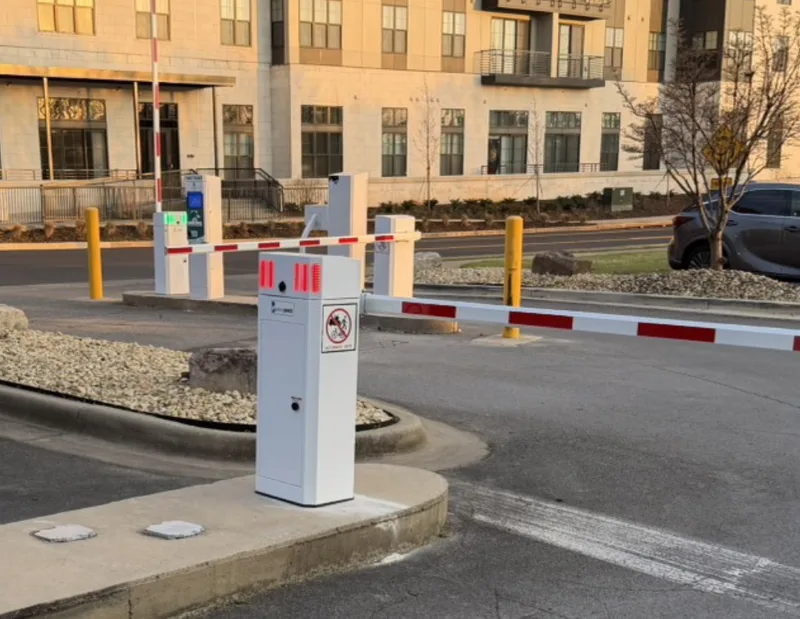

BGS-6XX
Barrier Gate
All BGS-600 series barrier gate arm configurations
ACB-300
Access Control BOXX
Pedestal-mounted access control reader unit
ACP-1XX
Access Control Pedestal
Standalone access control pedestal
Coming soon
BIG Pay BOXX
Full-featured pay station with large display
Coming soon
Truck-Height Pedestal
Elevated pedestal for truck-clearance lane access
Coming soon
Long-Range Reader Pedestal
Extended-range reader for gated access control
Files represent approximate geometry for spatial coordination. Not for structural or manufacturing use. Contact our technical team for project-specific BIM support.
Technical Support
Questions About a Specific Drawing?
Verified architects and engineers have a direct line to our technical team — not a sales queue. If a drawing doesn't match your project conditions (ceiling height, island geometry, conduit entry points), we can provide project-specific guidance.
