Parking CAD Drawings for Construction Documents
The Parking BOXX drawing library gives architects, engineers, and MEP designers a complete set of installation drawings for every CloudEASE parking control configuration — entry/exit islands, pay stations, access control pedestals, and barrier gates.
Each of the 22 drawing packages is a multi-page PDF ready for direct inclusion in a construction document set, covering plan view, isometric dimensions, conduit routing, cabling schedule, and finished island view.
3D BIM Objects for Revit, Rhino & AutoCAD
Beyond 2D drawings, the library includes 3D model files for the EntryBOXX, ExitBOXX, Mini Pay BOXX, Barrier Gate BGS-6XX, and Access Control Pedestal in Revit Family (.RFA), Rhino (.3DM), and universal STEP format — compatible with all major CAD and BIM platforms.
Drawing Package Contents
- Plan View — Top-down footprint with island dimensions and clearances
- Isometric View — 3D with annotated dimensions and equipment placement
- Conduit Routing — Conduit runs, junction boxes, and stub-up locations
- Cabling — Cable schedule, wire gauge, and connection details for MEP coordination

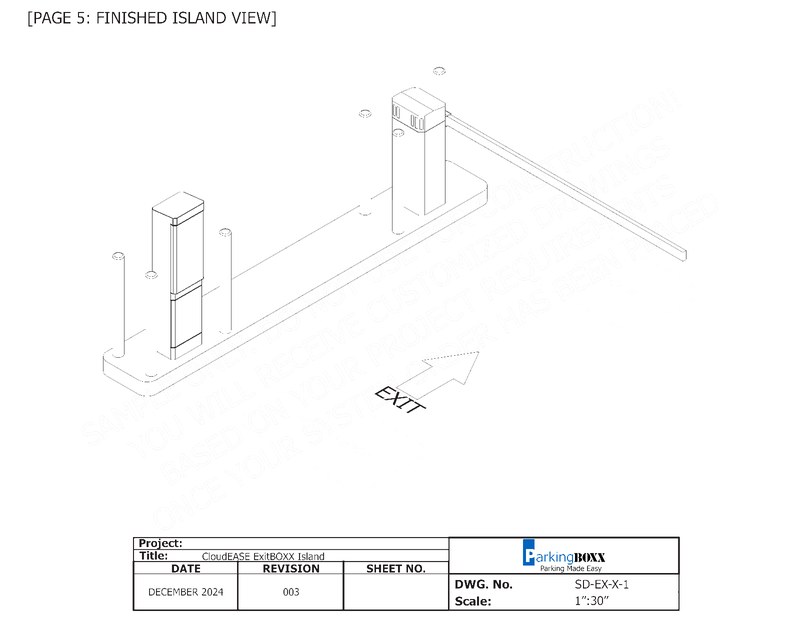

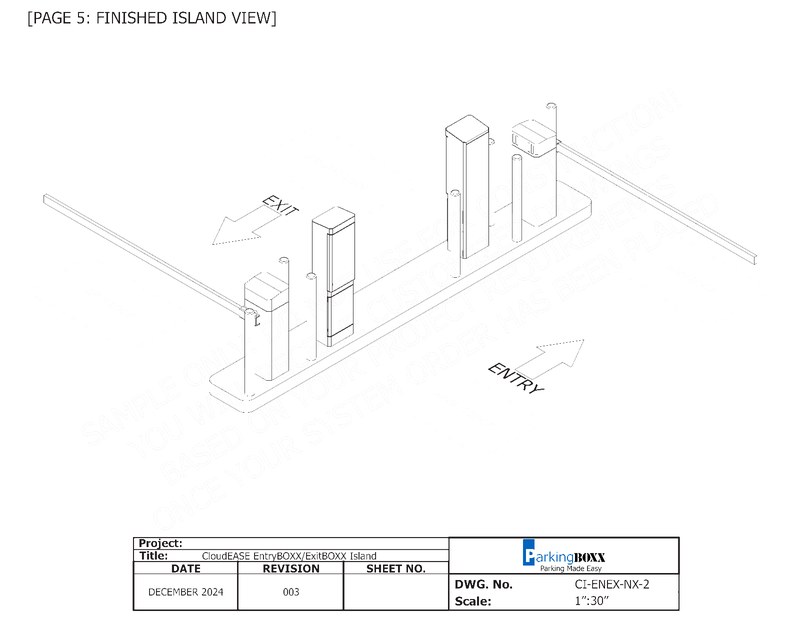

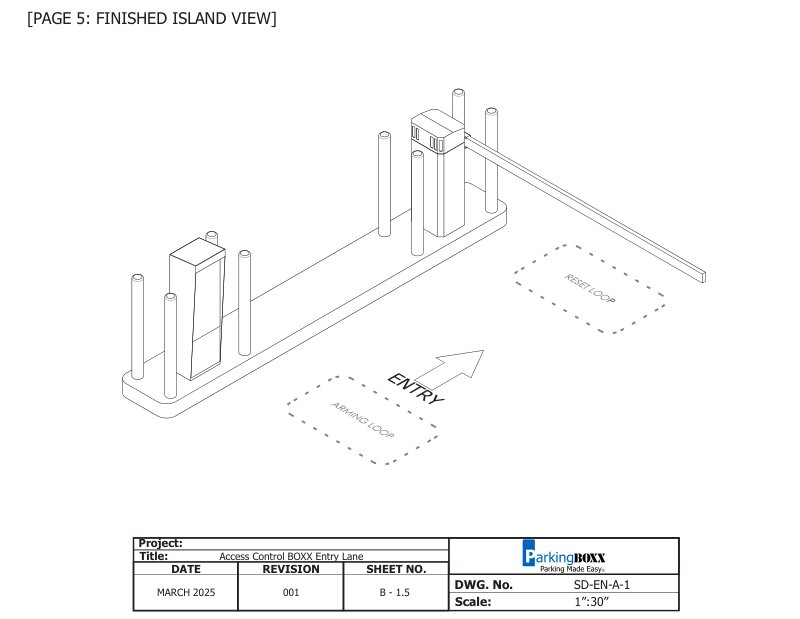

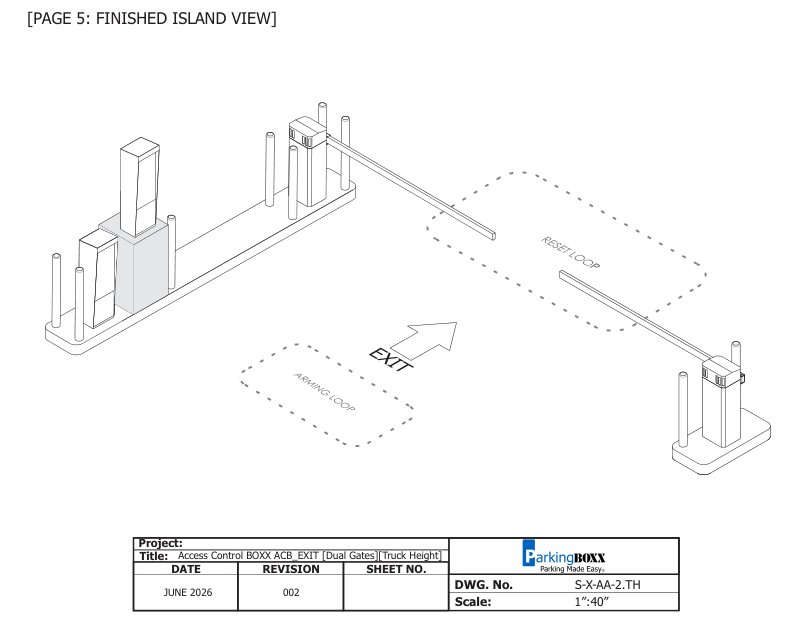

- Finished Island View — Rendered installation for owner and client presentations
